Basic Info

Model No.:  LDN

Product Description

Model NO.: LDN Certification: BV, ISO, CE Specification: Normal, ISO9001, 2000 Origin: Hebei China Condition: New Application: Home, Industrial, Commercial Transport Package: Pellet HS Code: 730110000 Flange Ground Screw anchor ,ground spike pile for solar mounting or construction ,with hot dip galvanized treatment


Material: Q235
Size: length : 550-6000mm ,diameter of pipe : 68/76/89/114/140MM, pipe thickness :2.0/2.75/3.0/3.75/4.00mm
Length: And Thickness: Customed
Surface treatment: Hot dipped galvanized,
Packing: Steel Pallet
OEM and ODM: Available
Production process :
Cutting pipe , forming pipe accrding the design ,welding ,pickling ,hot galvanization ,inspection and packing

Usuage : timber construction ,building foundation ,pile of road sign & traffice ,advertising and warning board, solar power systems ,fencing system ,flag poles ,shelds & container
1.  Timber Construction 2.  Solar Power Systems
3.  City and Parks 4.  Fencing Systems
5.  Road and Traffic 6.  Sheds and Containers
7.  Flag Poles and Marks 8.  Garden and Leisure
9.  Boards and Banners 10. Event Structures

Diameter(mm) Thickness(mm) Length(mm)
76 2.0 1000
76 2.0 1200
76 3.0 1200
76 3.0 1500
76 3.0 1800
89 3.0 1500
89 3.0 1800
89 3.0 2100
114 4.0 1800
114 4.0 2100
114 4.0 2500
The production process is as follows: 1. Steel strip cutting 2. Shape forming 3. Shape welding 4. Polishing 5. Helix welding 6. Hot dipped galvanizing sufface treatment 7. QC and packing

This kind of ground screws is fixed by nuts, without flange plate in the end. It is cheap and adjusted conviniently. During the installing, you do not adjust the smooth and height. It is not only suitable for natural ground, but also for dense and even tarred surfaces.

Our Superiority :

1: Our factory has more than 20years experience in the field of metal products .
2. we own abundant technical force, specialized in producing all kinds of garden series, anchor series and other metal products.
2. Research and design staff to keep us always in the head of this field .QC staff to keep best quality before shipments.
3. We can make mould and goods according to clients' samples or drawings .OEM orders are welcome .
4.Our staff with more than 20years foreign trading experience, so we can provide good service : better communication for business, better reputation to keep timely orders arrangement, orders tracking ,delivery on time ,booking vessel and shipments & .

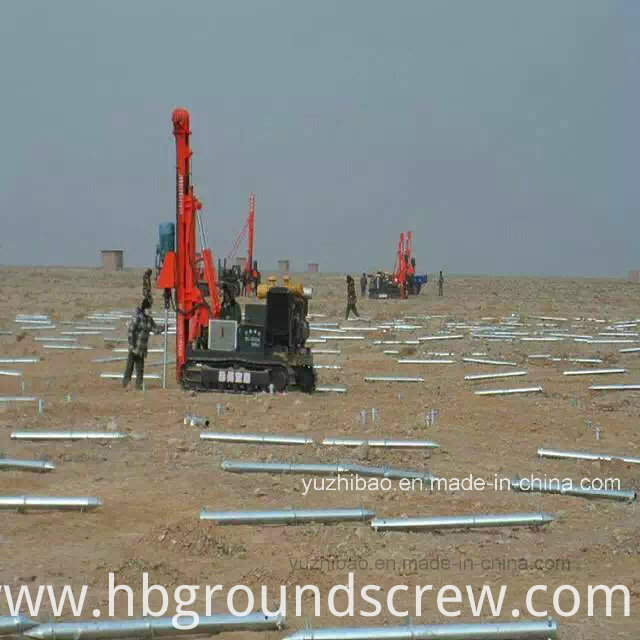

Helical Ground Screw Drilling
Helical Ground Screw Drilling
Helical Ground Screw Drilling
Helical Ground Screw Drilling
Helical Ground Screw DrillingHelical Ground Screw Drilling

Contact us if you need more details on Ground Screw. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ground Spike、Ground Screw Anchor. If these products fail to match your need, please contact us and we would like to provide relevant information.
